CIOKS DC10 strømforsyning for pedaler

CIOKS DC10 strømforsyning for pedaler
kr 2 690,00

Art.nr.: DC10


1 stk. på lager hos SpeakOn Larvik

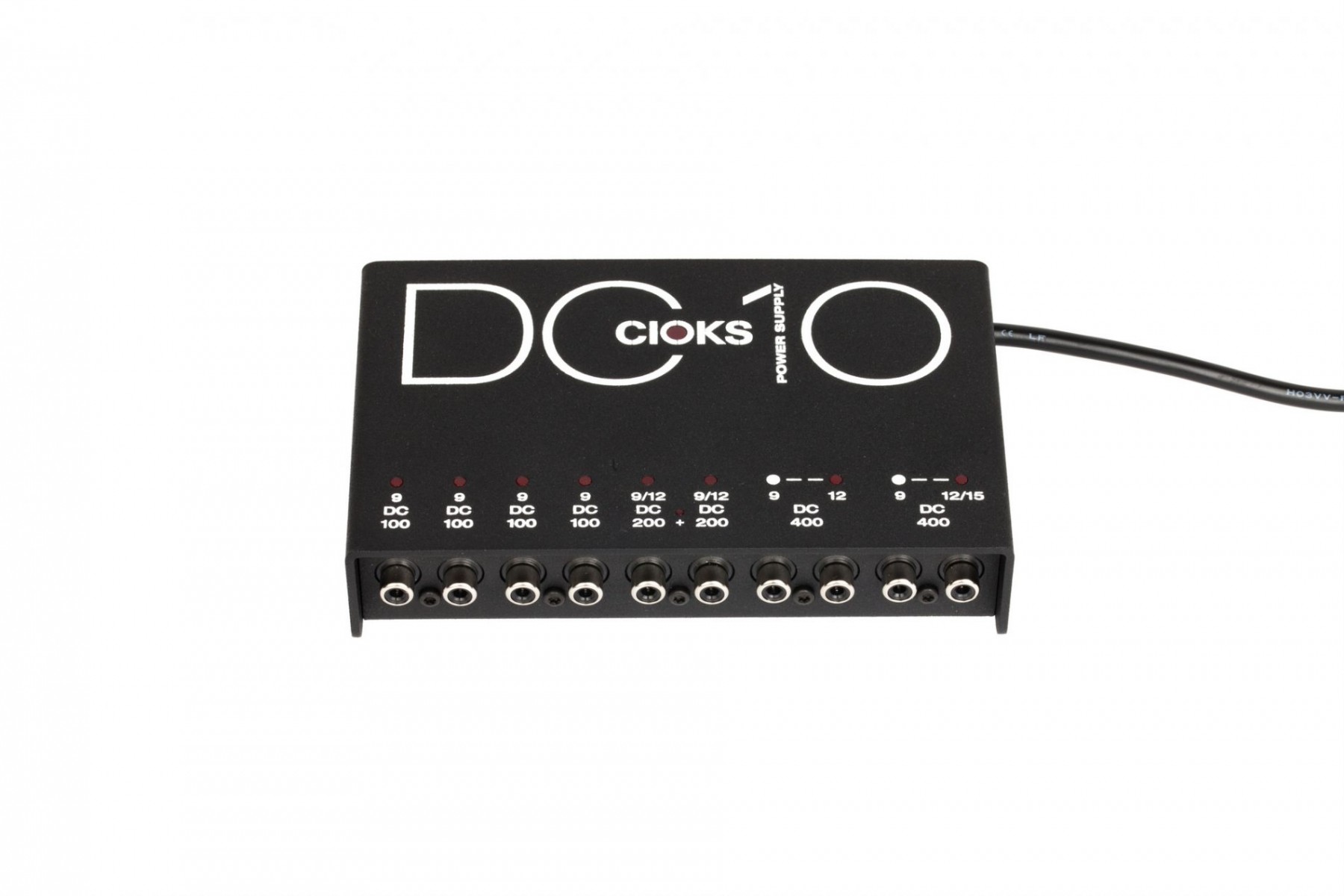

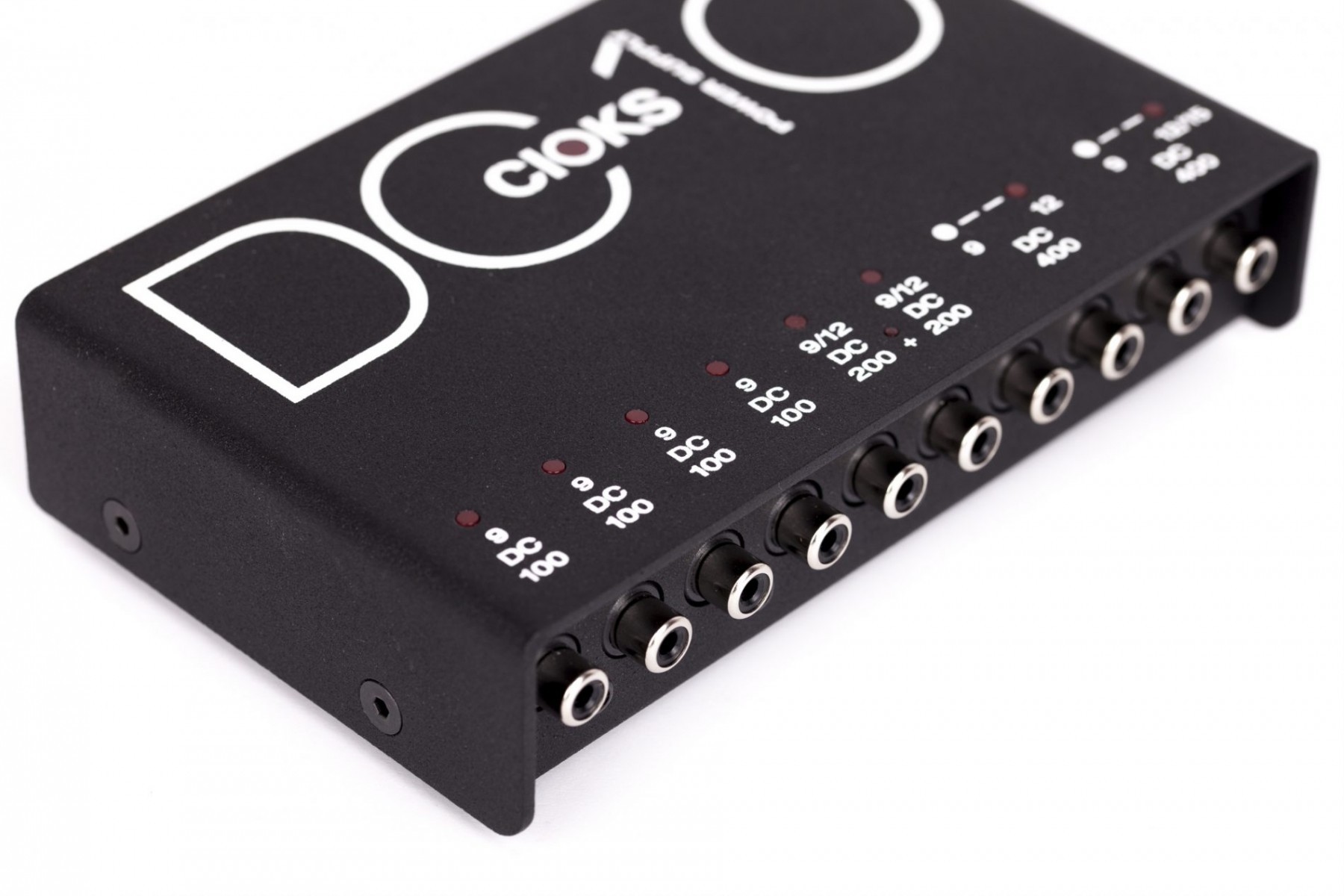

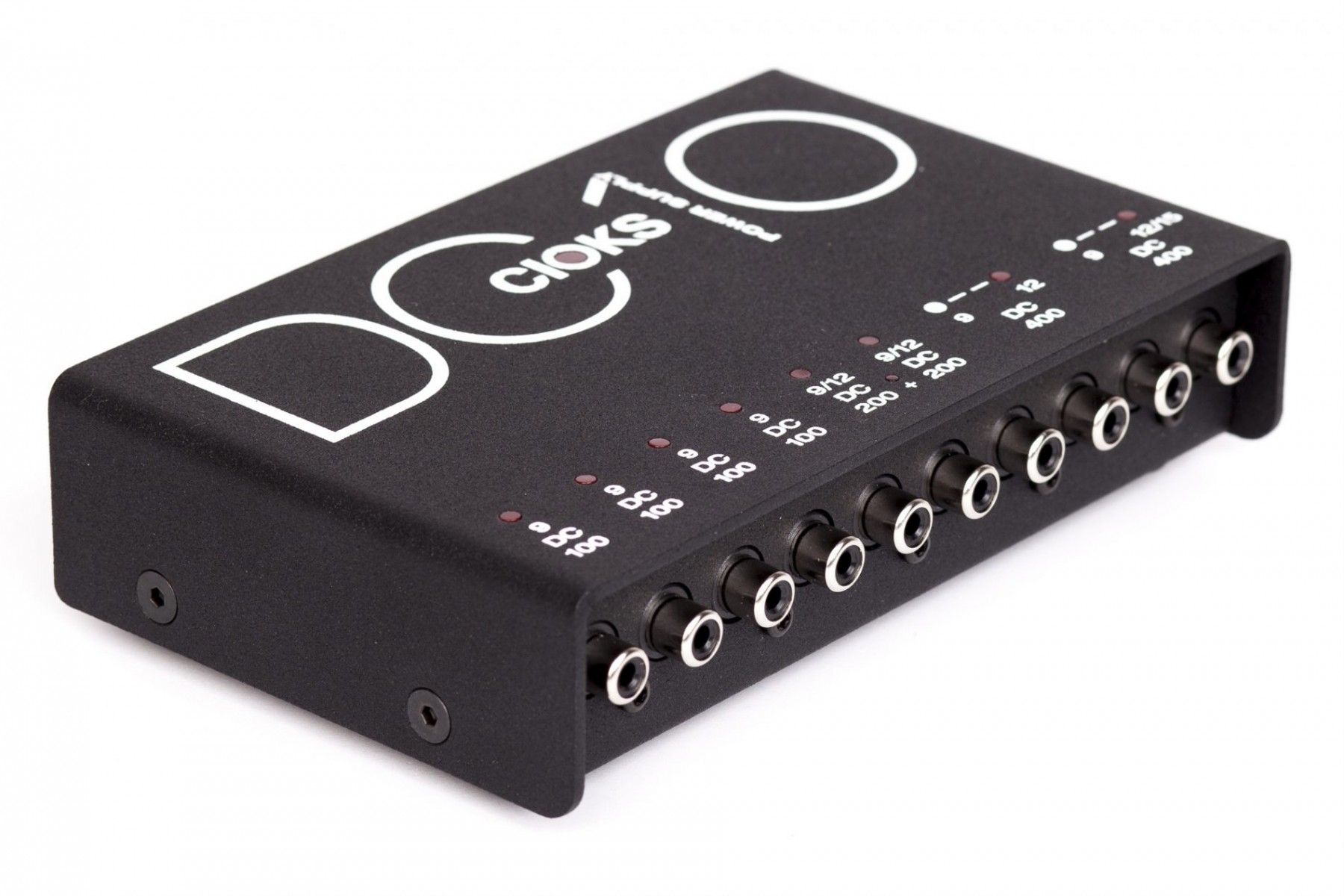

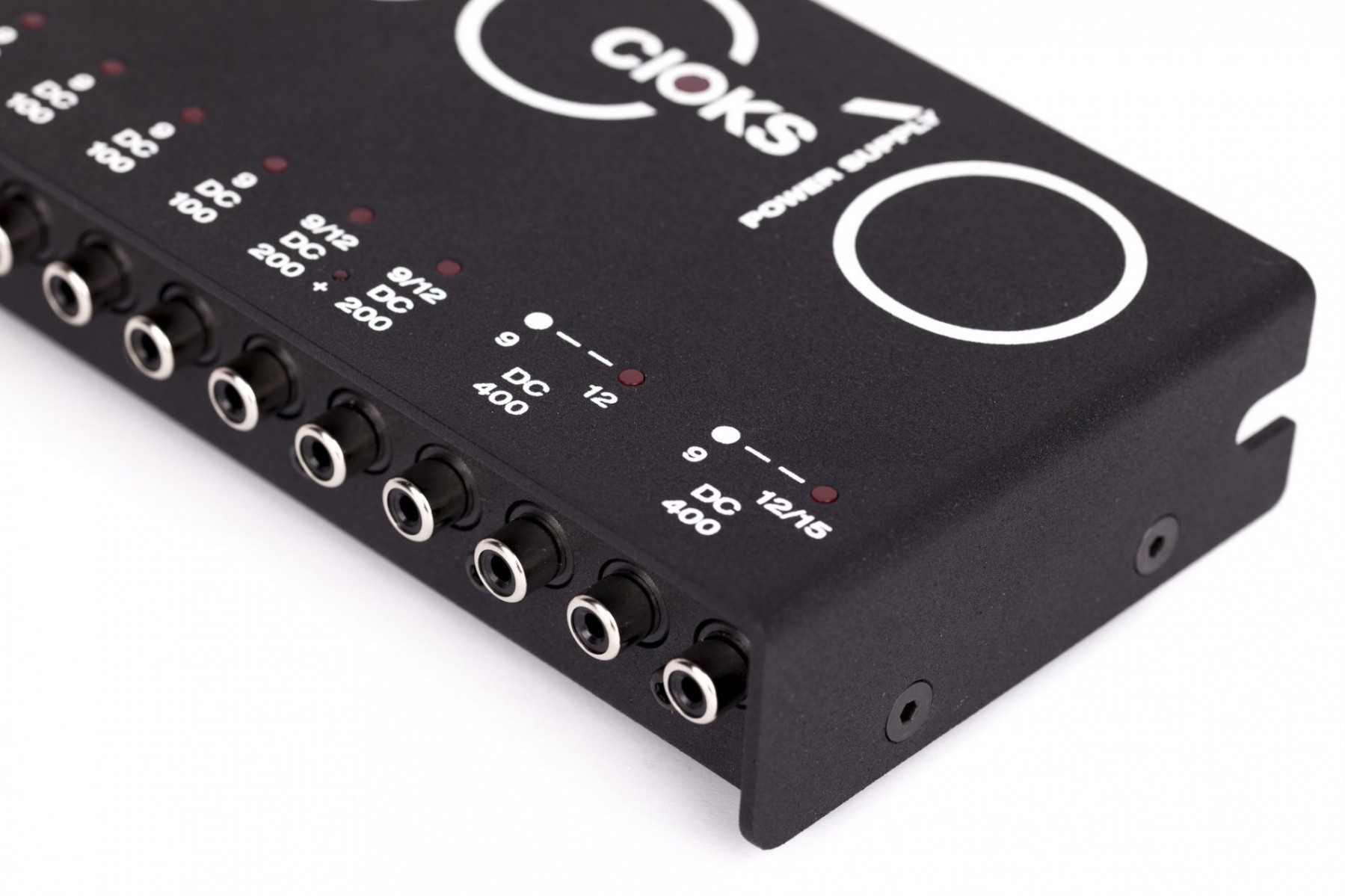

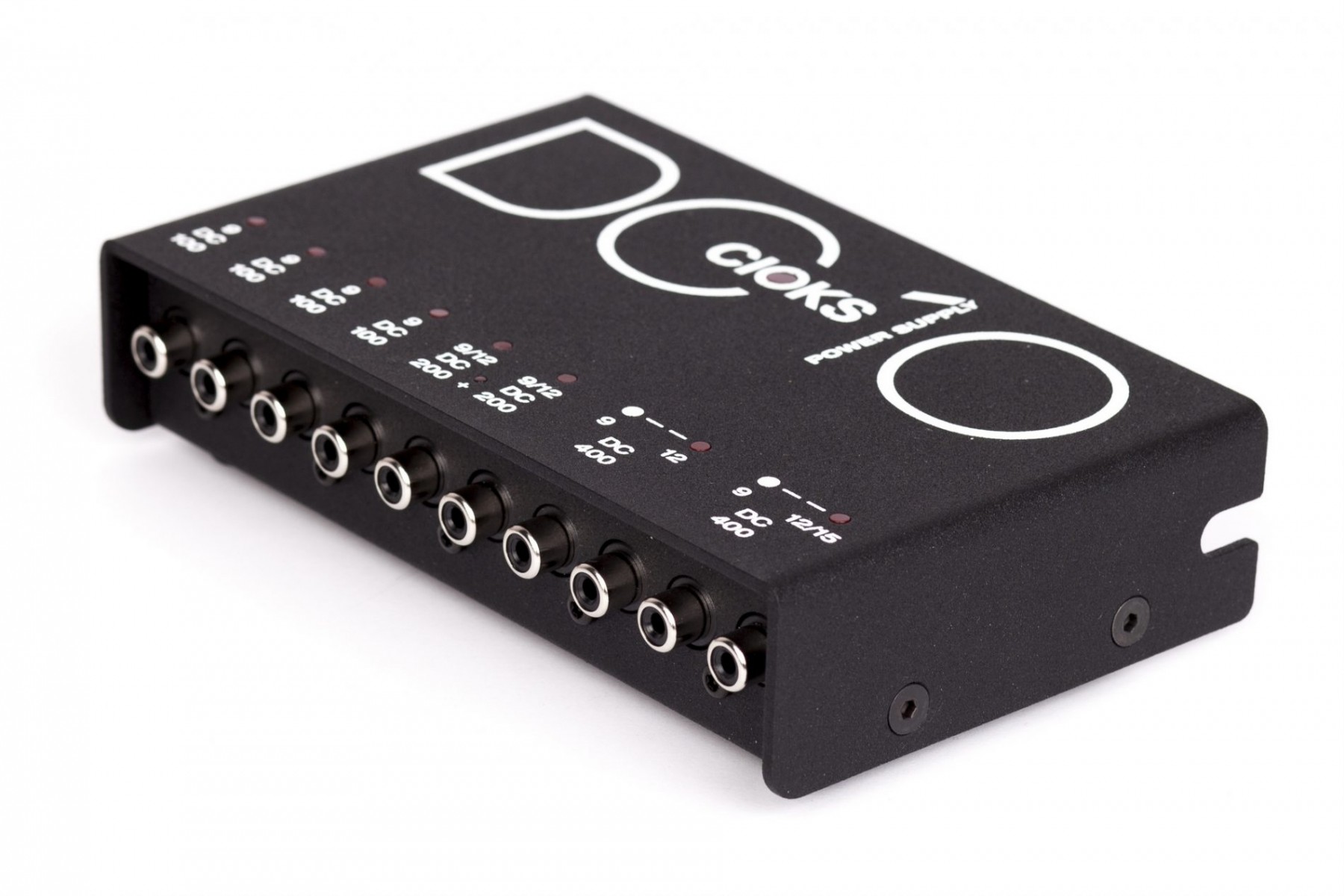

DC10 is a professional multi-output power supply for effect pedals. It has 10 regulated and well-filtered DC outlets configured in 8 isolated sections. With a total of 1.600mA it’s a perfect solution for bigger rigs with pedals only using a DC power source. Its three powerful sections with 400mA each will power pedals with special requirements like Strymons, Eventides, TC Electronic Nova-series pedals or TC Helicon pedals, Moogerfoogers, Radial Tonebone pedals or others without the need of special cables. Selectable with a switch DC10 offers voltages 9, 12 and 15V, and combined with the included Stack Flex or Series adapter Flex also 18 and 24V. The first 4 isolated outlets offering 4x100mA are perfect for standard 9V low current pedals.
• SpeakOn AS tar forbehold om eventuelle skrivefeil og prisendringer.
OR
Beskrivelse

Details

  • 10 outlets configured in 8 isolated sections
  • Toroidal transformer with additional electromagnetic field shielding
  • 3 powerful DC sections with 400mA each
  • 15V option for Radial Tonebone pedals
  • Short circuit protection of all outlets
  • Advanced LED monitoring of each section
  • Temperature monitoring
  • 120 or 230V mains voltage operation
  • A total of 16 Flex cables included
  • Split Flex for powering two pedals of one outlet included
  • Stack Flex and Series adapter Flex for powering 18 or 24V pedals included
  • Compatible with Pedaltrain and Temple Audio pedalboards
  • Mounting bracket and all pedalboard mounting hardware included

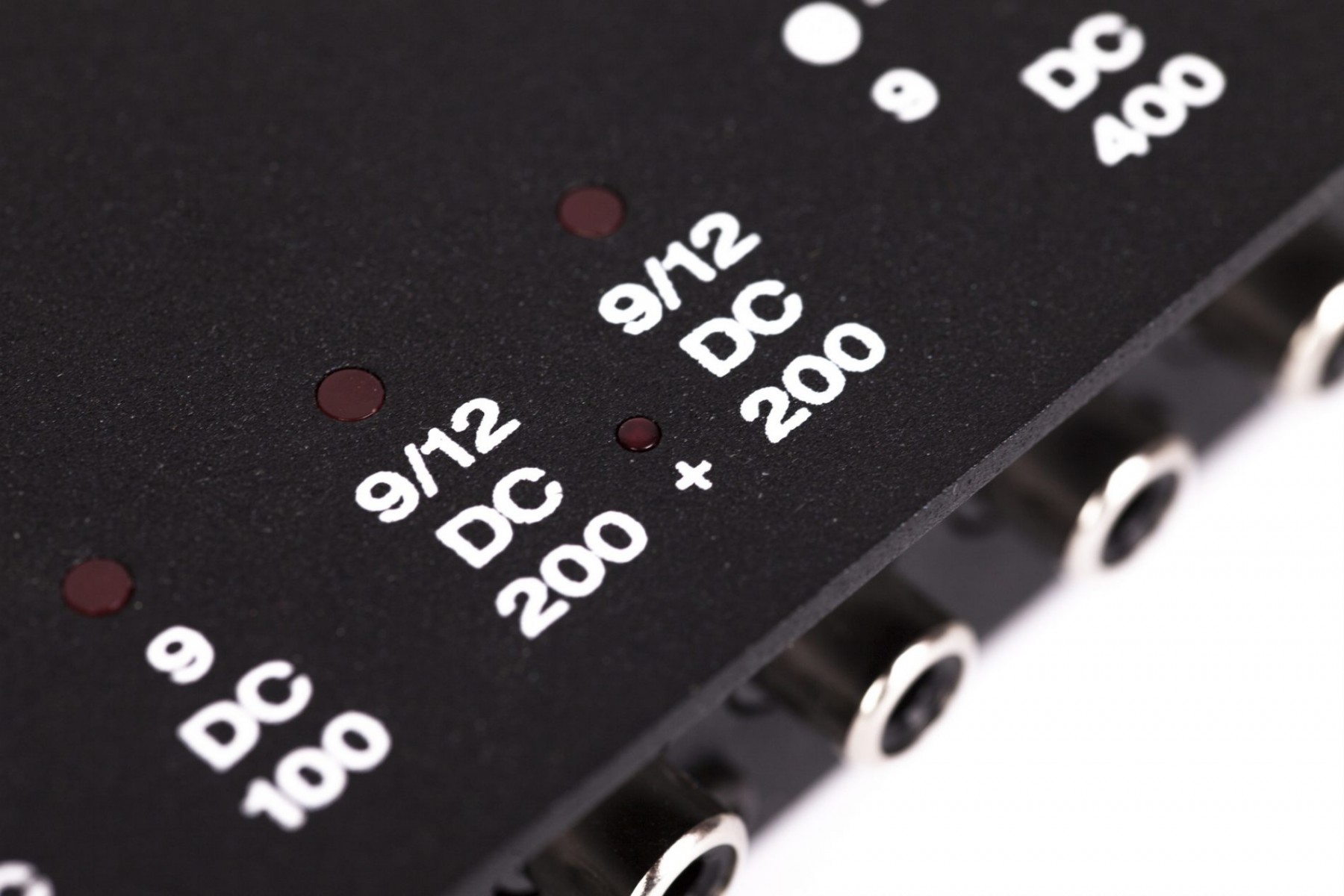

Outlet 1-4: 9V DC / 100mA each
Outlet 5-6: 9 or 12V DC / 200mA each*
Outlet 7-8: 9 and 12V DC / 400mA
Outlet 9-10: 9 and 12 or 15V DC / 400mA
* can be merged into a 400mA section

Size: 158x98x35mm (excl. detachable rubber feet)
Weight: 1,1kg

Warranty period: 5 years worldwide

Order number:
DC10    CIOKS DC10 – Professional power supply for effect pedals with 10 outlets

  • CIOKS DC10 power supply
  • Mains power cord
  • 16 Flex cables:
    • Type 1 – black with 5,5/2,1mm centre negative DC plug x8
    • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
    • Type 4 – green with 5,5/2,5mm centre positive DC plug x2
    • Type 5 – black with 3,5mm tip positive Jack plug x1
    • Type 6 – black with 9V battery clip x1
    • Split Flex type 1 – black, powers two pedals of a single outlet x1
    • Stack Flex type 1 – white/black, adds voltages of two outlets x1
    • Series Adapter Flex – white, adds voltages of two outlets x1
  • Pedalboard mounting hardware: mounting bracket, screws, washers, stand-off and hex key
  • Manual
  • Product sheet (drill guide)
  • Flex guide
