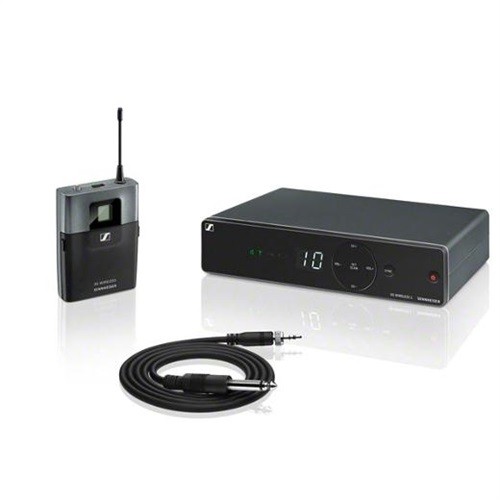

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.
- Beskrivelse
-
Details
Dimensions Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mmTHD, total harmonic distortion ≤ 0.9% Weight approx. 340g (receiver), approx. 95g (transmitter) Signal-to-noise ratio ≥ 103 dBA RF output power 10 mW Switching bandwidth up to 24 MHz Operating time approx. 10 hrs Modulation Wideband FM Power supply Receiver: 12 V DC nom. / 300 mA
Transmitter: 2 AA size batteries, 1.5 VOutput voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Housing Rugged ABS housing Frequency 8 frequency banks, each with up to 10 factory-preset channels Frequency range A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHzSensitivity < 3 μV at 52 dB(A)rms S/N SPL for peak deviation 130 dB Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity 1.5 mV / Pa AF frequency response Receiver: 50 to 16,000 Hz (–3 dB) Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range 45 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C Receiver Principle double superheterodyne Diversity principle Antenna switching diversity via internal antennas
