- Beskrivelse
-
Details

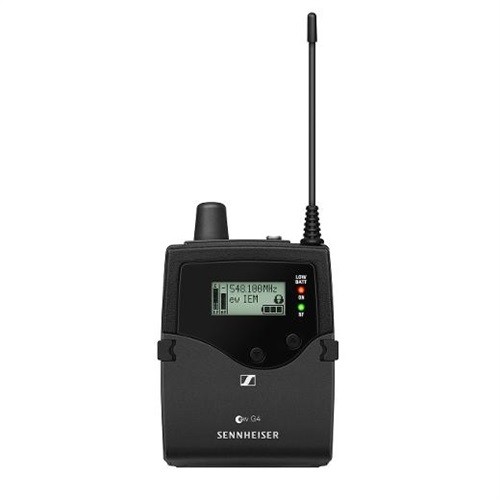

- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 50 mW) depending on country regulations
Dimensions Approx. 82 x 64 x 24 mm Compander Sennheiser HDX THD, total harmonic distortion ≤ 0.9 % Weight (incl. batteries) approx. 125 g Signal-to-noise ratio approx. 90 dBA Switching bandwidth up to 42 MHz Peak deviation ±48 kHz Nominal deviation ±24 kHz Operating time approx. 4 to 6 hours (depending on volume level) Modulation Wideband FM Power supply 2 AA batteries, 1.5 V or BA 2015 accupack Current consumption at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µAAdjacent channel rejection Typically ≥ 65 dB Audio-Output-Power 2 x 100 mW at 32 Ω Intermodulation attenuation Typically ≥ 70 dB Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off Powering 3 V battery / 2.4 V rechargeable battery Receiving frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels RF sensitivity < 4 μV, typ. 1.6 μV for 52 dBA rms S/N Squelch 5 to 25 dBµV, adjustable in steps of 2 dB Bass Boost +8 dB at 8 kHz Temperature Range -10 °C to +55 °C Receiver Principle Adaptive diversity Blocking ≥ 80 dB
