Details

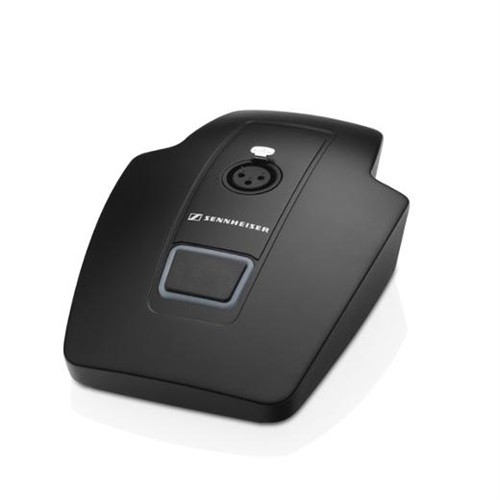

The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate.
The table stand MAT 133 is compatible with MEG 14-40-L.Dimensions 120 x 170 x 43 mm (BTH / WDH)
XLR-3M
Connector XLR-3F
clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)Weight 1210 g
Phantom powering P 24 - P 48
Operating temperature -10° - +50°C
Current consumption 3.7 mA
Output voltage high level output voltage > 2.4 V, low level output voltage < 0.4 V
- Solid Microphone Stand
- Timeless design
- Bi-colored light ring for clear visual feedback
- Logical function for easy control of e.g. cameras
- Solid Microphone Stand
- Timeless design
- Bi-colored light ring for clear visual feedback
- Logical function for easy control of e.g. cameras
- **Microphone modes**
Toggle on/off
Push to mute
Push to talk
permanent on (external LED control)
