Details
Overview

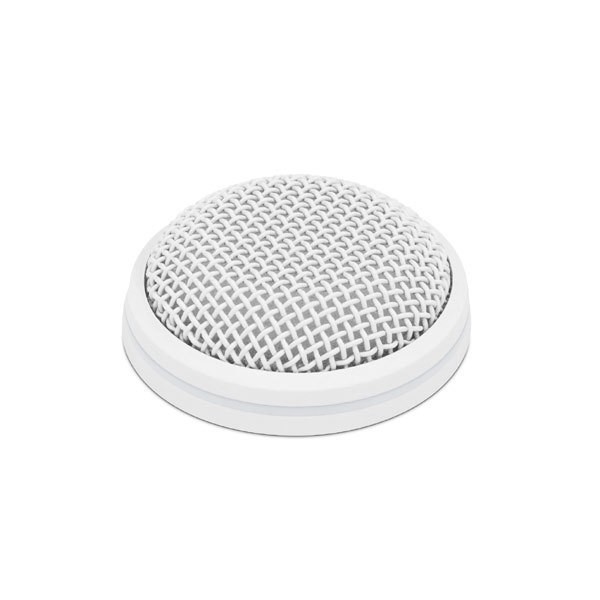

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.
Hva er med i esken?
- MEB 102
- Quickguide
- Mounting material
Technical Data
- Connector
- MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = − (Mic −), 4 = LED green (trigger signal), 5 = LED red (default)
- Current consumption
- MEB 102: 3 mA
MEB 102-L: 6 mA
- Colour
- black
white
nextel grey
- Dimensions
- Height: 83 mm (12 mm above surface), Diameter 28.5 mm
- Frequency response
- 40 Hz – 20 kHz
- Max. sound pressure level
- 125 dB
- Transduserprinsipp
- pre-polarized condenser microphone
- Weight
- 58 g
- Pick-up pattern
- omni-directional
- Nominal impedance
- 200 Ω
- Phantom powering
- P 24 - P 48
- Operating temperature
- 0 °C - +40 °C
- Equivalent noise level
- 21 dB (A)
- Equivalent noise level weighted as per CCIR 468-3
- 31 dB (CCIR)
- Acoustics
- Boundary Layer Microphone
- Dynamic range
- 104 dB (A)
- Sensitivity
- 16 mV/Pa
- Thread
- M 20
