Details
Overview

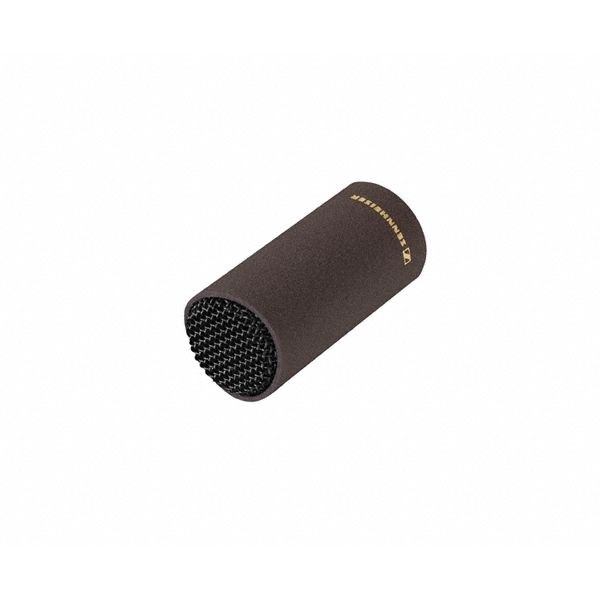

Its omni-directional pick-up pattern makes the MKH 8020 the ideal main mic for “spaced pair” and “Decca Tree” recordings or the use in an OSS “Jecklin Disk“ array. Especially in acoustically favorable ambiences this excellent microphone unfolds its outstanding quality. With a wide frequency response, which reaches deep down to 10 Hz the MKH 8020 is a perfect choice for capturing instruments like organ, grand piano or double bass in all their natural beauty. Furthermore, its capsule design is optimized for an extraordinarily even directional diagram.
Features
-
Omni-directional pick-up pattern
-
Modular design
-
Wide frequency response: 10 – 60,000 Hz
-
Extremely low distortion
-
Extremely low inherent self-noise
-
Very even directional diagram
-
Non-reflective Nextel® coating
-
Ideal for stereo and surround recordings, as an M microphone, and for ambience
-
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Hva er med i esken?
- Microphone head MKHC 8020
- XLR module MZX 8000
- Microphone clip MZQ 8000
- Windshield MZW 8000
- User manual
- Aluminium transport caser
Technical Data
- Frequency response
- 10 - 60.000 Hz
- Audio output
- XLR-3M balanced, transformerless, floating
- Sensitivity in free field, no load (1kHz)
- 31 mV/Pa (- 30 dBV/Pa)
- Nominal impedance
- 25 Ω
- Min. terminating impedance
- 1000 Ω
- Phantom powering
- 48 V +/- 4V
- Equivalent noise level
- 10 dB(A)
- Equivalent noise level weighted as per CCIR 468-3
- 21 dB
- Maximum sound pressure level (passiv)
- 138 dB SPL
- Current consumption
- 3,3 mA
-
