Details

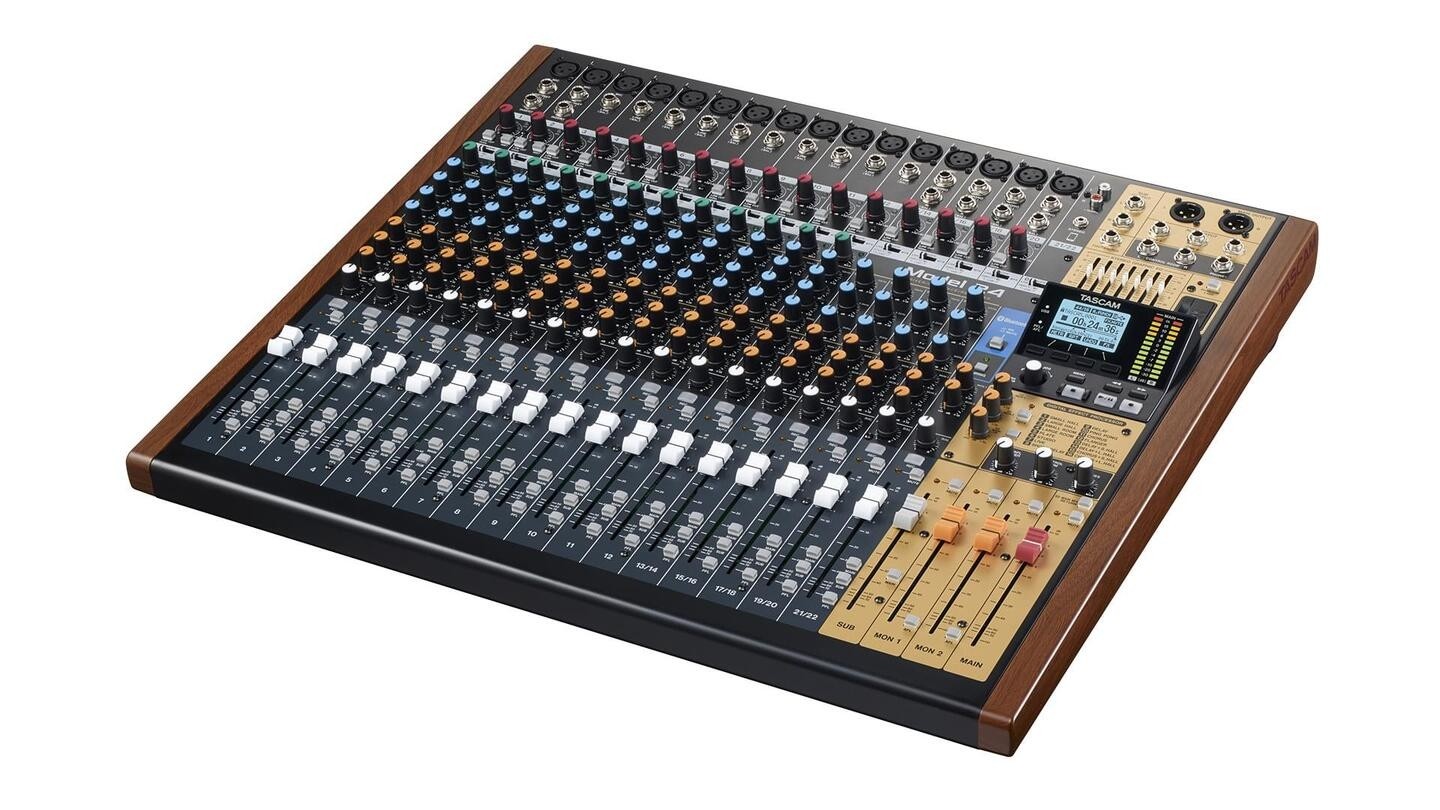

An all-in-one analogue mixer, multi-track digital recorder and audio interface
The Tascam Model 24 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 24 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
The Simple, Intuitive Design

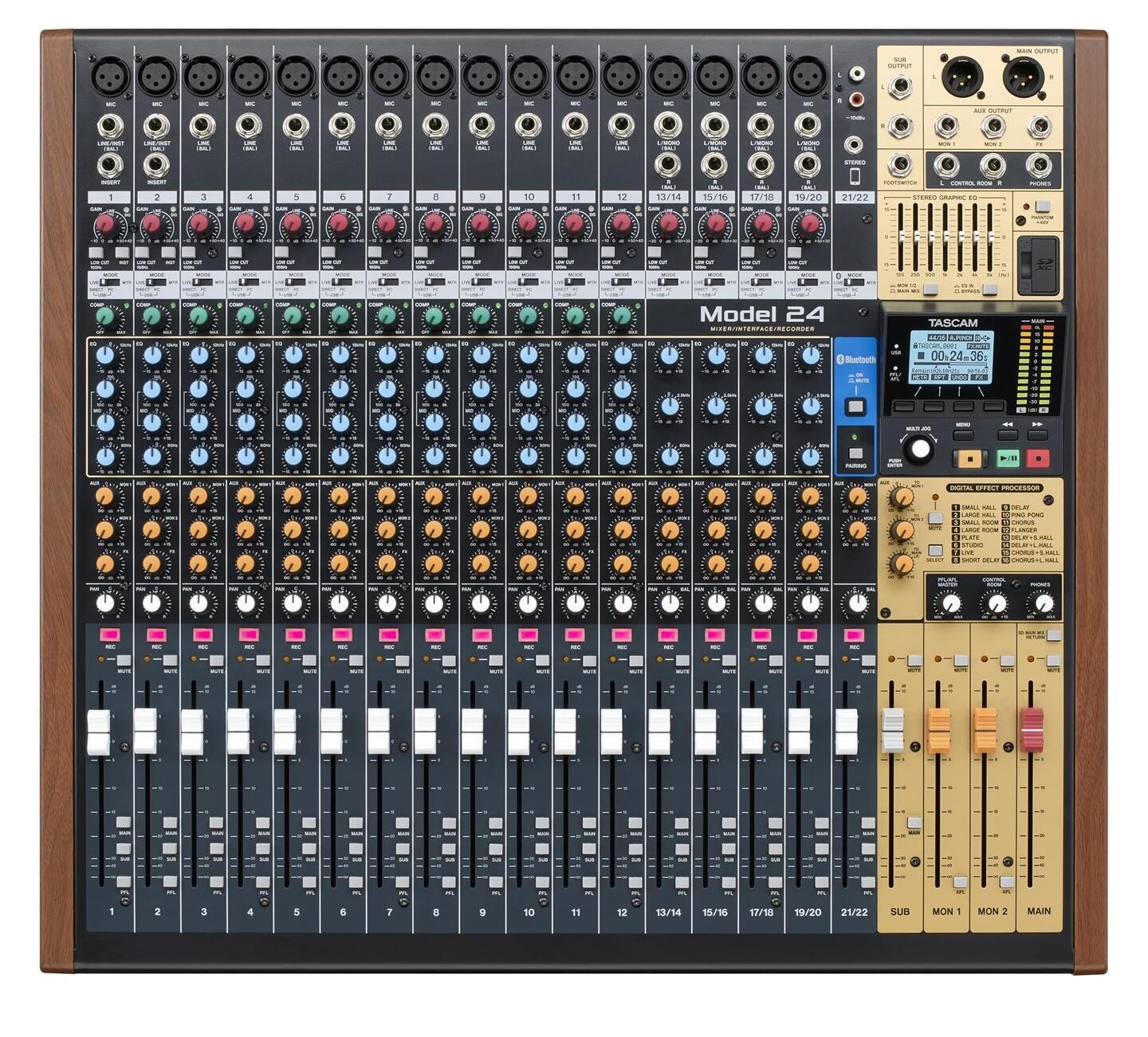

One glance is all you need - Model 24 was developed to be simple and intuitive for anyone to use. The 100mm physical faders allow for precision when tweaking volume, the accessible 7- band graphic stereo EQ to master the mix, the familiar EQ/Aux knobs, and the input/output jacks are all on the surface for quick and easy access.TASCAM’s revolutionary recording technology
Model 24 allows the users to directly record to an SD card, 24 tracks simultaneously in 24bit/48kHz, and it is capable of punching in/out 8 tracks at the same time. With TASCAM’s revolutionary recording technology, the console can also directly playback 22 tracks simultaneously from an SD card. TASCAM’s 16 high-grade mic preamps will guarantee a capture of the most pristine sound possible.Flexible Connectivity
Model 24 is flexibly equipped with 22 analog inputs consisting of 20 balanced inputs (12 mono and 4 stereo), 1 unbalanced stereo input. Also, Model 24 lets you connect to your favorite DAW via USB. Your smartphone can be connected with the Bluetooth™ feature to stream rehearsal audio for individual practice or to get the audience going with exciting songs before you strike the first chord on stage..Aktuelt ekstrautstyr:
AK-DC24, Dust Cover for Model 24Specifications
Recorder Recording media SD (512 MB – 2 GB)
SDHC (4–32 GB)
SDXC (64–512 GB)
Class 10 or higher requiredFile system FAT16 (SD), FAT32 (SDHC), exFAT (SDXC) Recording file format WAV Playback format WAV Sampling frequency 44.1 kHz, 48 kHz Bit depth 16 bit, 24 bit Recordable channels 24 channels max. (22 channels + stereo mix) Audio inputs and outputs Microphone inputs (CH 1–12, 13/14–19/20) XLR-3-31, balanced
(1: GND, 2: HOT, 3: COLD)Maximum input level +10 dBu Nominal input level –8 dBu Minimum input level –58 dBu Gain adjustable range 0–50 dB Input impedance 1.8 kO Phantom Power DC 48 V LINE inputs (CH 1–20) 6.3-mm TRS phone jack, balanced Maximum input level +22 dBu Nominal input level +4 dBu Gain adjustable range –10 dB to +40 dB (CH 1–12)
–20 dB to +30 dB (CH 13/14 to 19/20)Input impedance 22 kO INSERT (CH 1–2) 6.3-mm TRS phone jack
(Tip: Send, Ring: Return, Sleeve: GND)Nominal input level 0 dBu Maximum input level +18 dBu Input impedance 10 kO Nominal output level 0 dBu Maximum output level +18 dBu Output impedance 100 O STEREO inputs (CH 21–22) RCA pin jack, unbalanced
3.5-mm stereo mini jack, unbalancedMaximum input level +8 dBV Nominal input level –10 dBV Input impedance 10 kO MAIN output XLR-3-32, balanced
(1: GND, 2: HOT, 3:COLD)Maximum output level +4 dBu Nominal output level +22 dBu Output impedance 100 O SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT 6.3-mm TRS, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)Nominal output level –2 dBu Maximum output level +16 dBu Output impedance 100 O PHONES OUT 6.3-mm stereo phone jack Maximum output power 80 mW + 80 mW (at 32 O) Working impedance 16–600 O Other inputs and outputs Footswitch connector 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended) USB connector USB B-type, 4-pin Channel EQ Low cut 100 Hz, –18 dB/Oct. High (shelving) 12 kHz, ±15 dB Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB (Mono)
fixed 600 Hz, ±15 dB (Stereo)
Q = 0.55Low (shelving) 80 Hz, ±15 dB Graphic EQ 7-Band Frequencies 125/250/500/1k/2k/4k/8k (Hz) Gain ±15 dB Audio performance Residual output noise –100 dBu
(MAIN OUT, MAIN fader at min.)Equivalent input noise (EIN) –128 dBu
(Mono input channel at 150 O, GAIN at max.)Total harmonic distortion (THD+N) <0.01 % (GAIN at min., +10 dBu)
<0.004 % (GAIN at min., +4 dBu) (MIC IN to MAIN OUT)Frequency response Analogue: 20 Hz to 30 kHz, +0.5/-1.0 dB
Digital: 20 Hz to 20 kHz, +0.5/-1.0 dBChannel crosstalk –80 dB
(1 kHz, PAN fully counter-clockwise / fully clockwise)Maximum gain 74 dB (MIC to MAIN OUT)
50 dB (MIC to INSERT OUT)
74 dB (MIC to SUB OUT)
79 dB (MIC to CR OUT)
75 dB (MIC to MONITOR OUT)
75 dB (MIC to FX OUT)
24 dB (USB/SD to MAIN OUT)
(EQ flat, PAN fully counter-clockwise / fully clockwise)Computer hardware requirements Windows Windows-compatible computer with a USB 2.0 port CPU type/speed Dual core, 2 GHz or faster Memory 2 GB or more Drivers USB Audio Class 2.0, ASIO 2.0, WDM (MME) Screen resolution 1280 px × 800 px or more Macintosh Apple Mac computer with a USB 2.0 port (operation confirmed with Intel and Apple Silicon M1 or M2) CPU type/speed Dual core, 2 GHz or faster Memory 2 GB or more Driver Core Audio Screen resolution 1280 px × 800 px or more Power supply and other specifications Power AC 100–240 V, 50/60 Hz Power consumption 52 W Dimensions (W × D × H) 580 mm × 513 mm × 117 mm (overall) Weight 10.2 kg Permissible operating temperature range 5–35 °C Included items AC power cord, Owner’s manual incl. warranty, TASCAM ID registration guide
