JB Systems MINI DMX SPLITTER 1 inn 2 ut

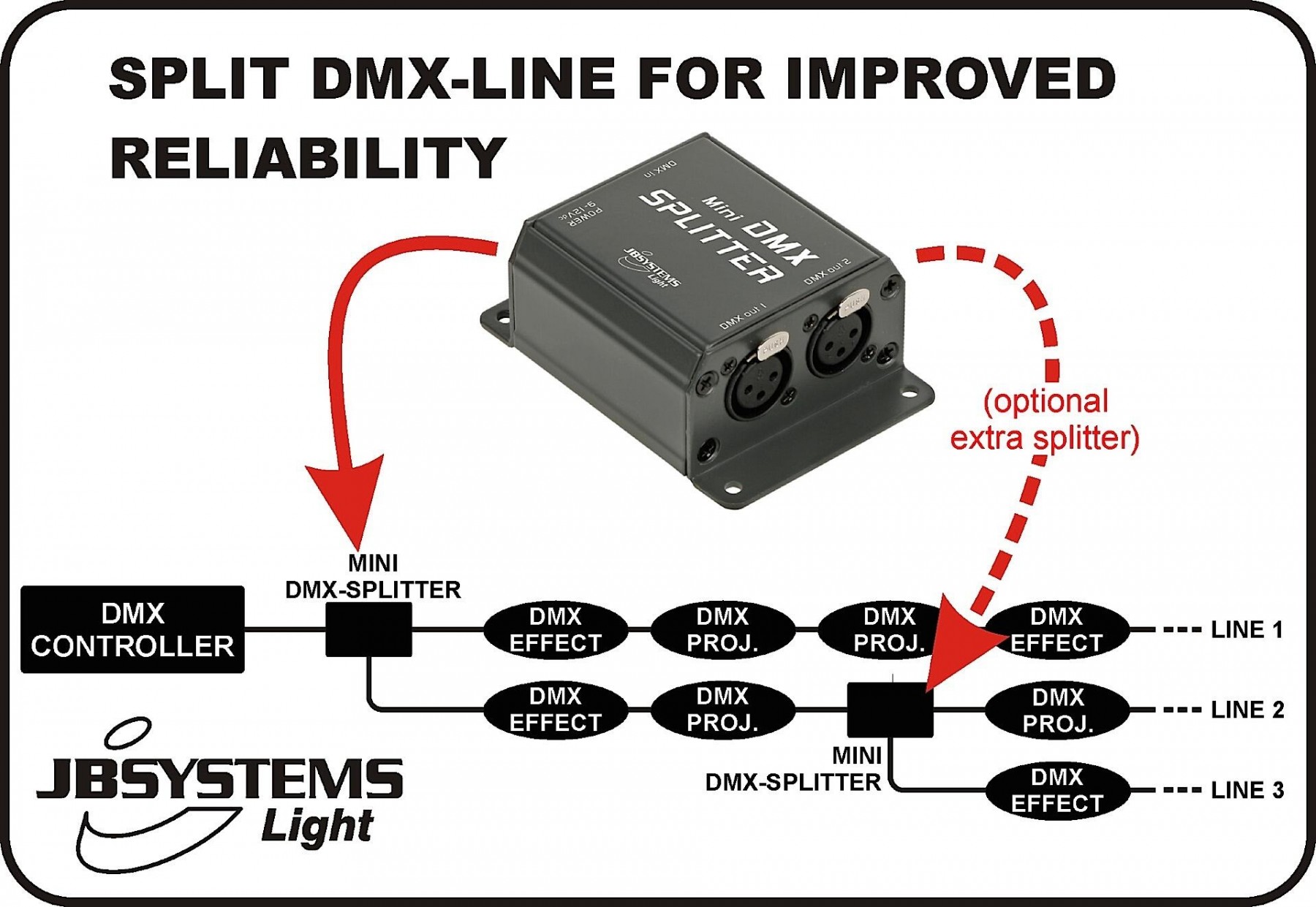

 • The perfect solution for many DMX-line problems: this mini DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other, problems on 1 line will not influence the other line!
 • Booster function makes your DMX-installation more reliable and flexible to set up.

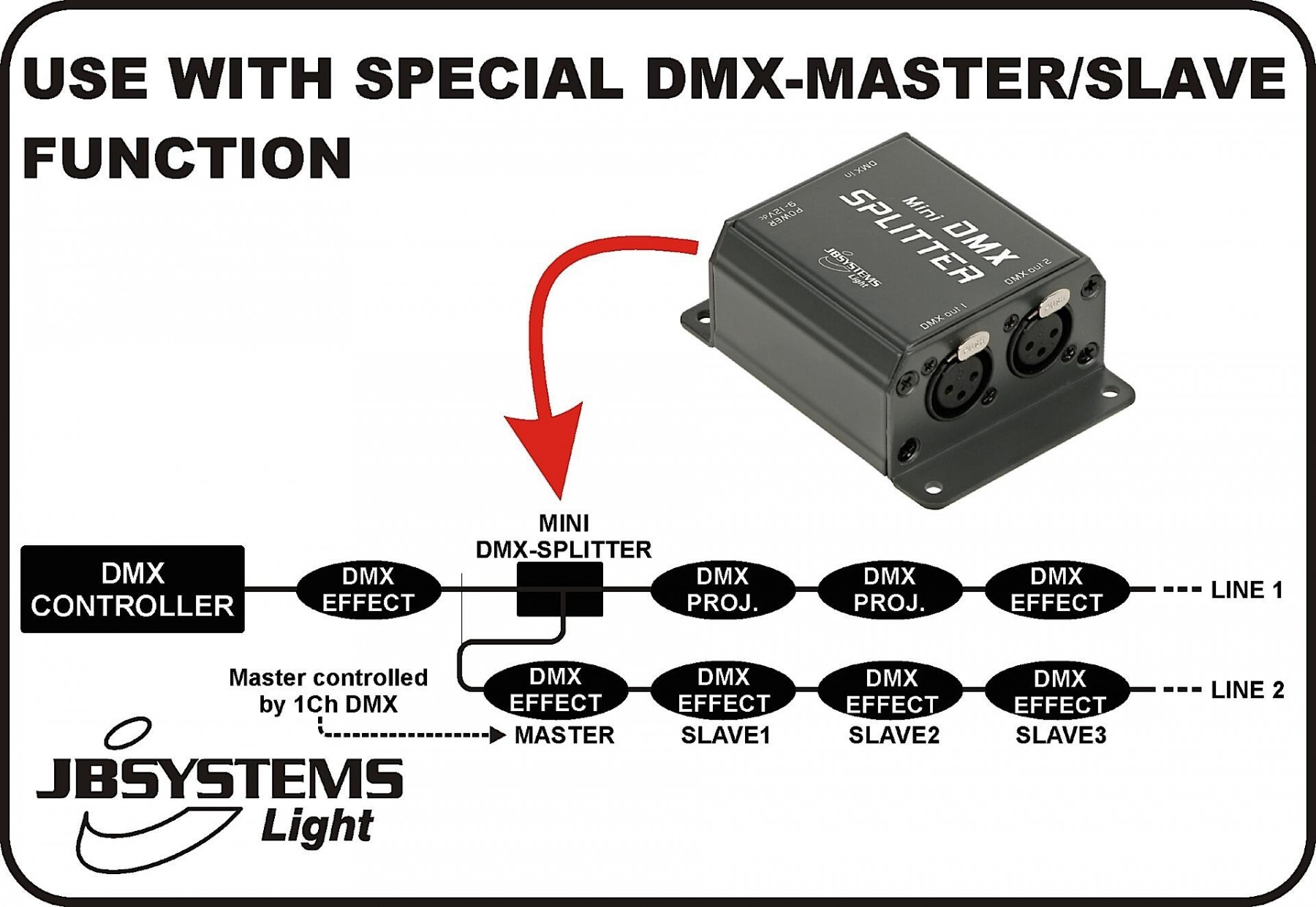

 • Can also be used to set up the unique “DMX Master/slave" system.
 • Small size: can be added / hidden anywhere!
 • 1 DMX-input + 2 DMX-outputs, each equipped with 3pin XLR-connectors.

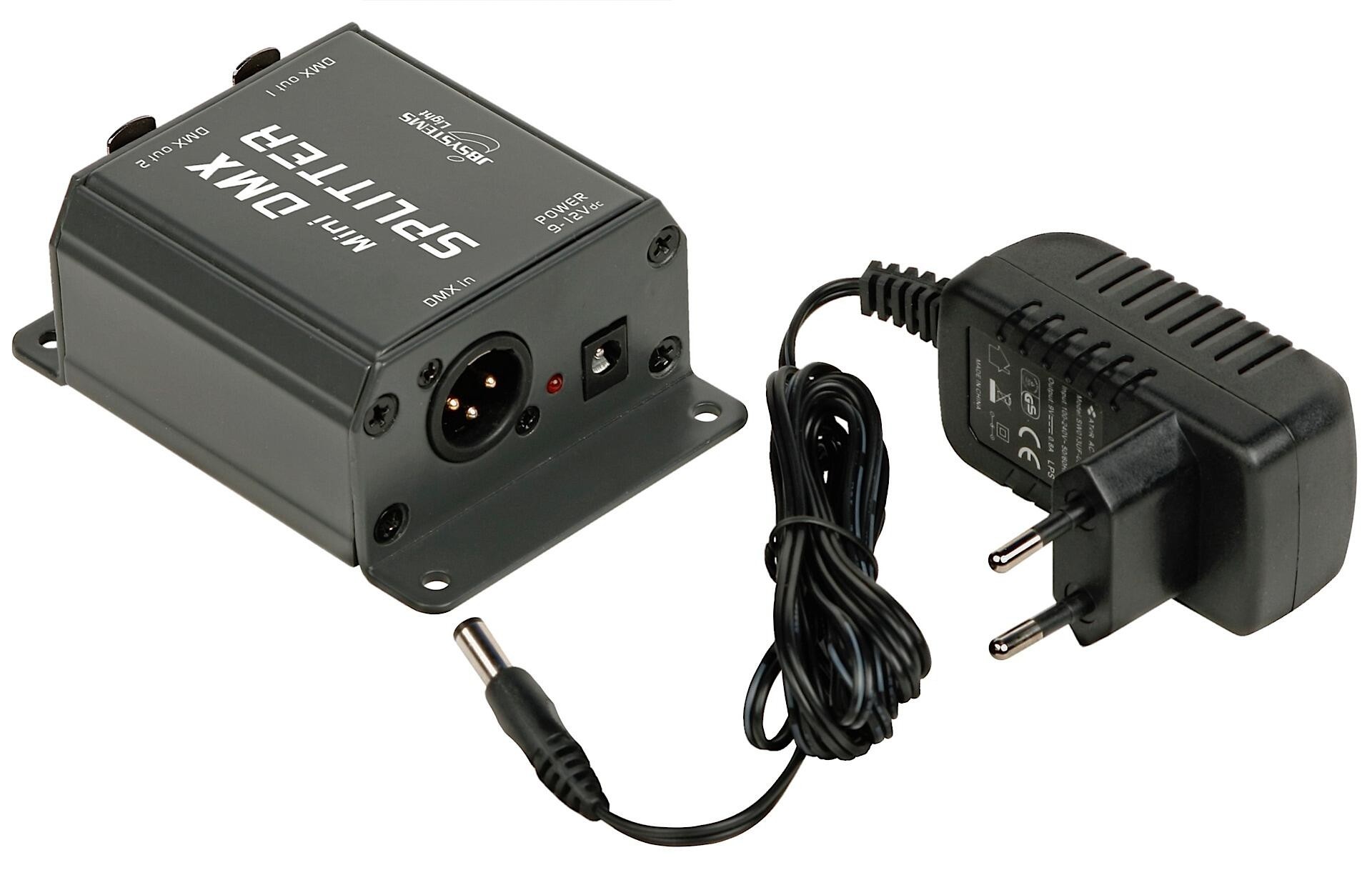

 • Small 9V DC-power adapter included
Technical Information
 • AC/DC Power adapter: AC 100-240V 50/60Hz ? 9Vdc / 0,8A
 • DMX in/outputs: 3pin XLR
 • DMX-Isolation: protection against faulty DMX-signals on in/out, no overvoltage protection
 • Size: 102 x 72 x 39,4 mm
 • Weight: 0,24 kg (including power adapter)
